Xiaomi Robot Vacuum X10+/S10+/X20+/S20+/X20 Pro Brush Cover

The Xiaomi Robot Vacuum Brush Cover replaces the gray protective frame around the central roller of compatible Xiaomi robots. It helps hold the main brush in its intended position and protects the brush assembly during floor cleaning. This is one replacement cover, supplied without a roller, robot or cleaning station.

A practical replacement for a damaged frame

Inspect the cover if a clip no longer holds, the frame is cracked or the protective wires are damaged. A correctly fitted cover is part of the robot's normal brush assembly. Replacing the cover addresses a worn or broken cover; it does not repair a faulty brush motor, battery or suction system.

Durable frame with quick-release clips

The cover uses an ABS frame with stainless steel wire across the opening. Its integral clips make it straightforward to release the cover for brush access, helping with routine removal of trapped hair and debris. Keep the clips and seating surfaces clear so the frame can lock into place securely after maintenance.

Check the full robot name

Product code BHR6558GL fits Xiaomi Robot Vacuum X10+, S10+, X20+, S20+ and X20 Pro. Match the complete name on your robot's nameplate before purchasing. The plus sign matters: a plain X10 or S10 is not automatically the same fitting. X20 Max uses a different brush-cover model and is not included in this compatibility list.

Fitting and everyday care

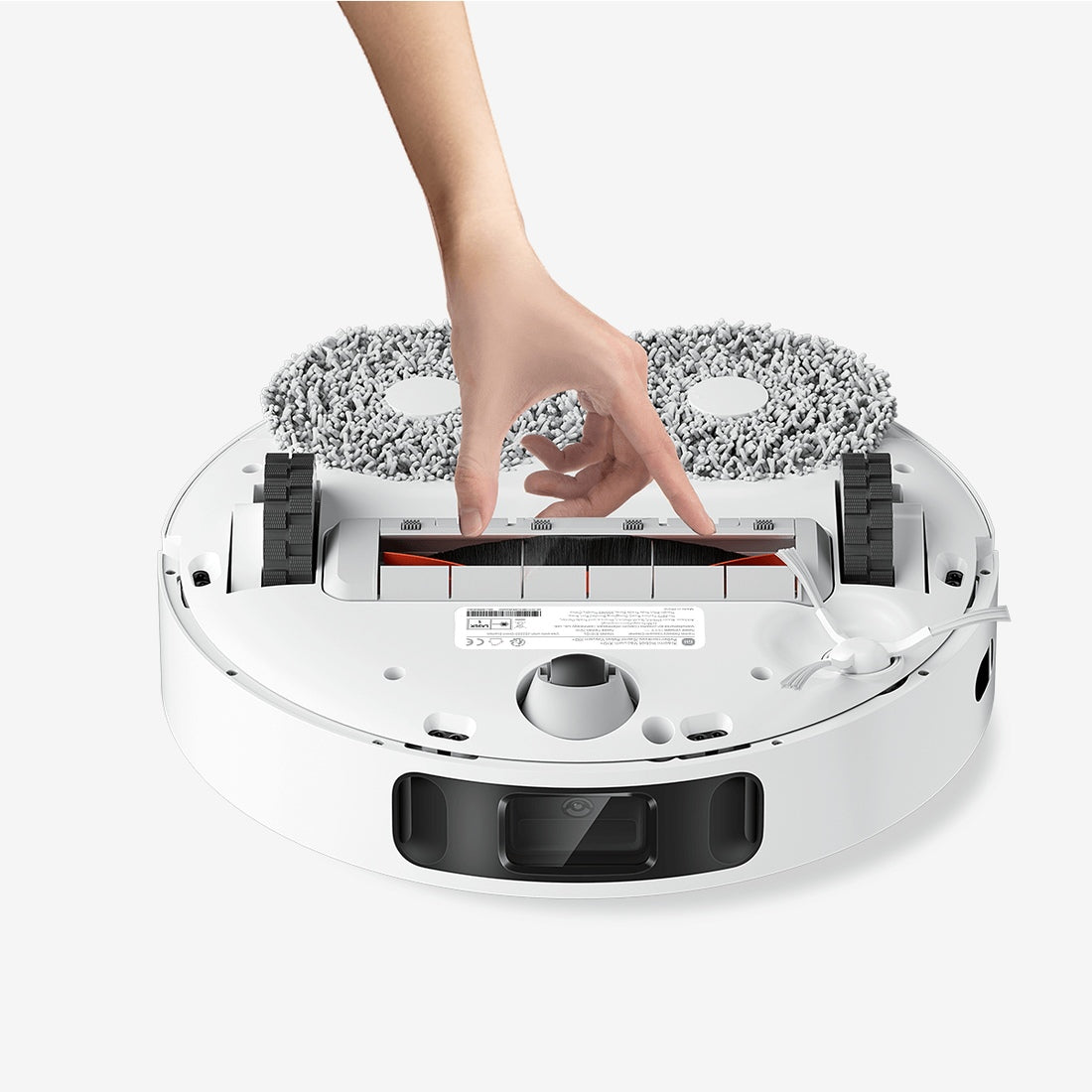

Switch off the robot before working underneath it. Follow the robot's instructions to release the original clips and lift out the old cover. Clear accumulated debris, check the brush is correctly seated, then fit the replacement frame and make sure both clips engage. Do not operate the robot with a loose, damaged or missing cover.

Check the frame, wires and clips periodically, especially if the robot catches a cable or another object. Remove trapped material carefully and follow your robot's care instructions. There is no fixed replacement interval: replace the part when inspection shows damage or it can no longer fasten securely.

Specifications

Common questions

Is a main brush included?

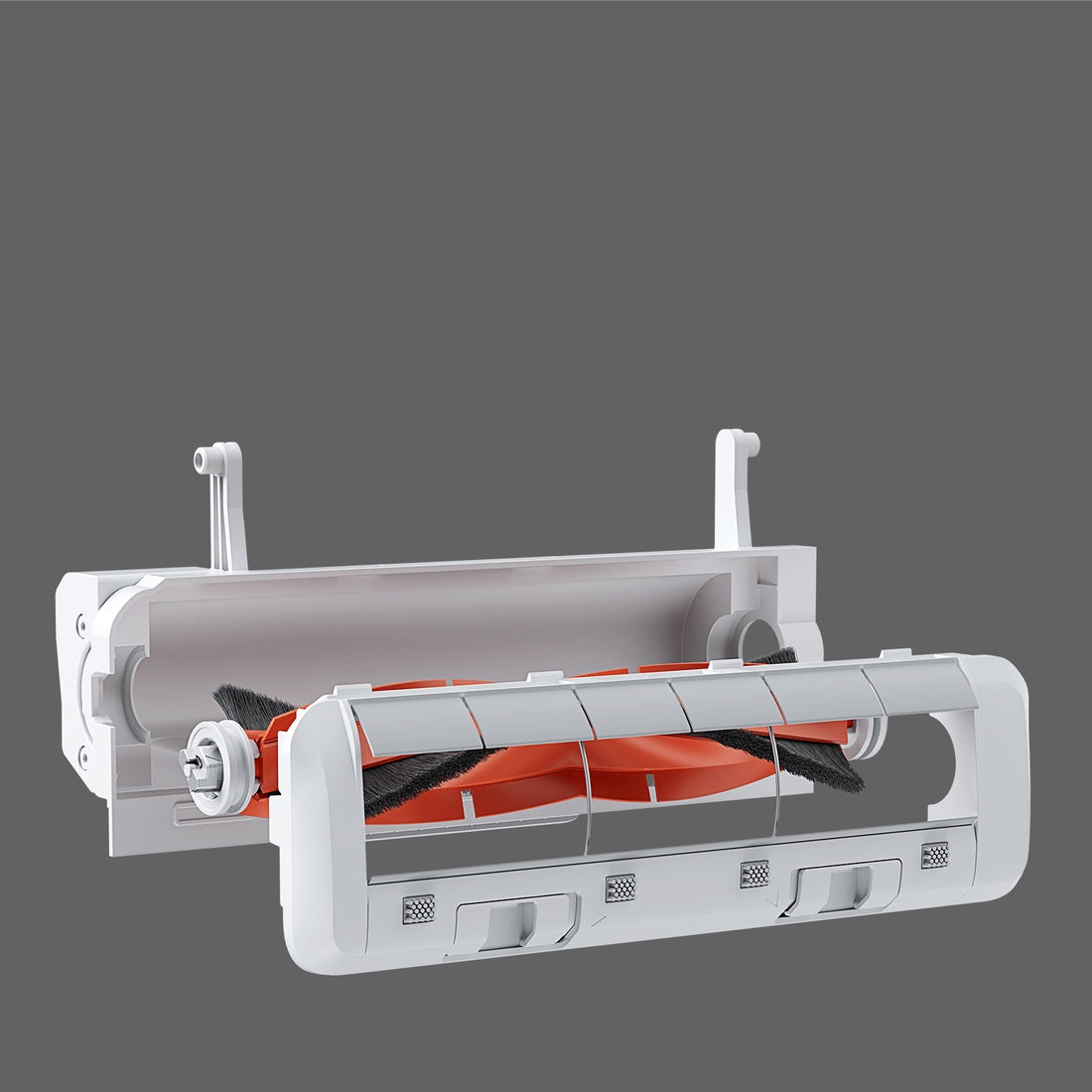

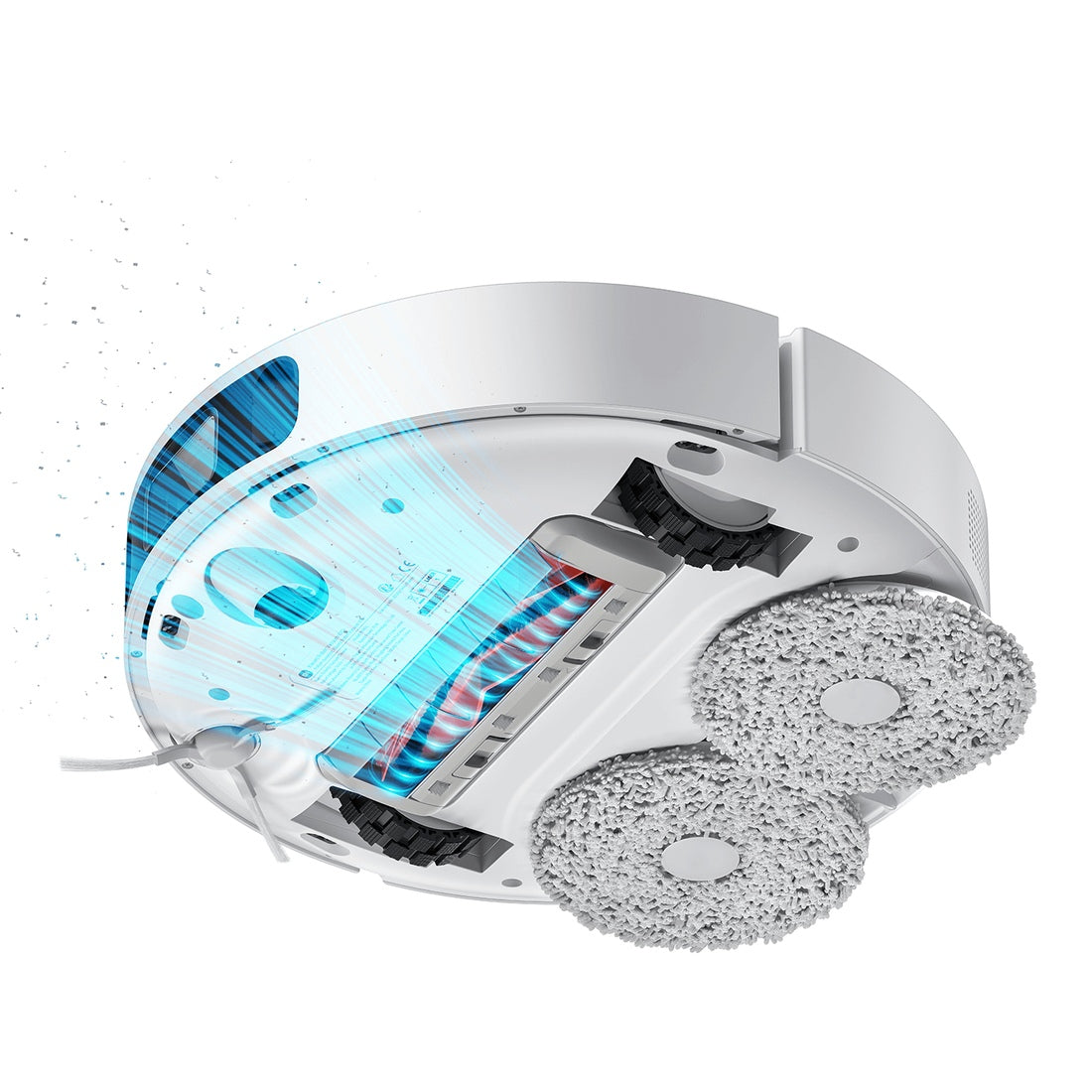

No. The roller and cleaning tool are separate accessories. Photos of an assembled robot illustrate the cover's location.

Is this a cover for the charging station?
No. It fits underneath the robot around the central brush.

Does it fit X20 Max?
No. Order the cover specified for that model; this listing covers the five models stated above.

Does it require an app or charging?
No. It is a mechanical replacement part with no battery, pairing or software setup.
